RGB CONTROLLER LITLE SERIES

RGB Controller little pictures and connection diagram. click on that photo for view big type of that picture

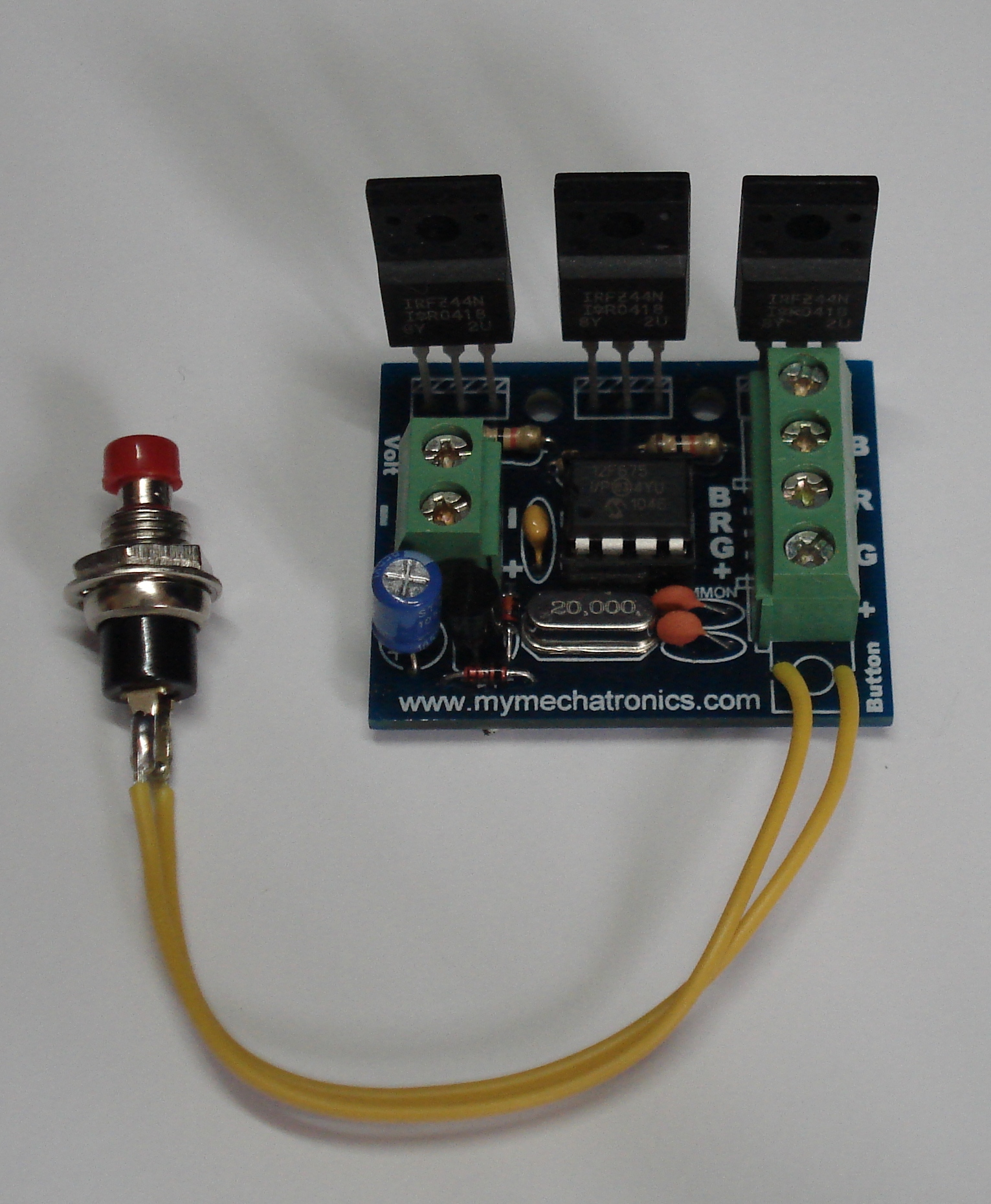

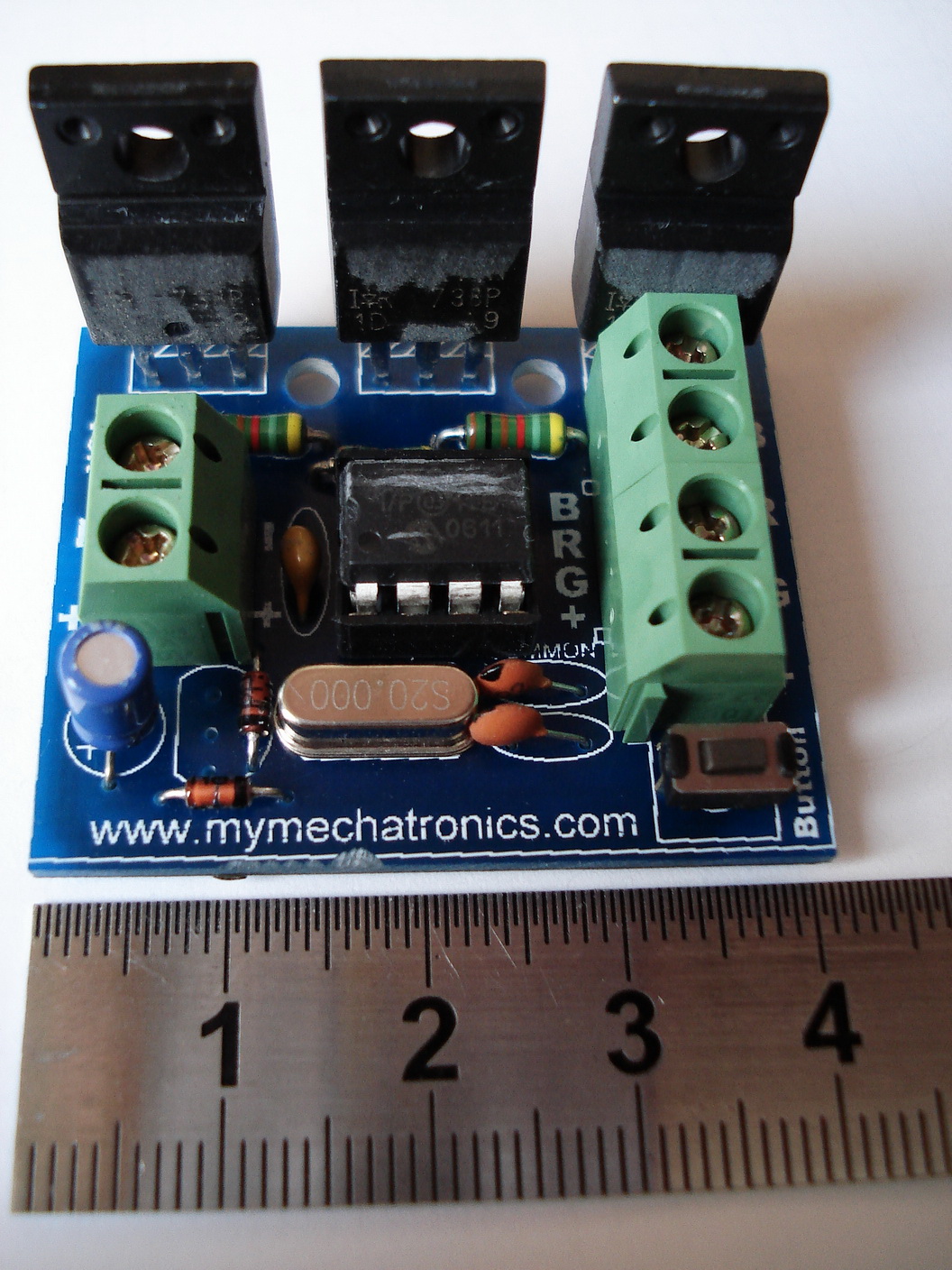

RGB Controller L1 ( Clamens )

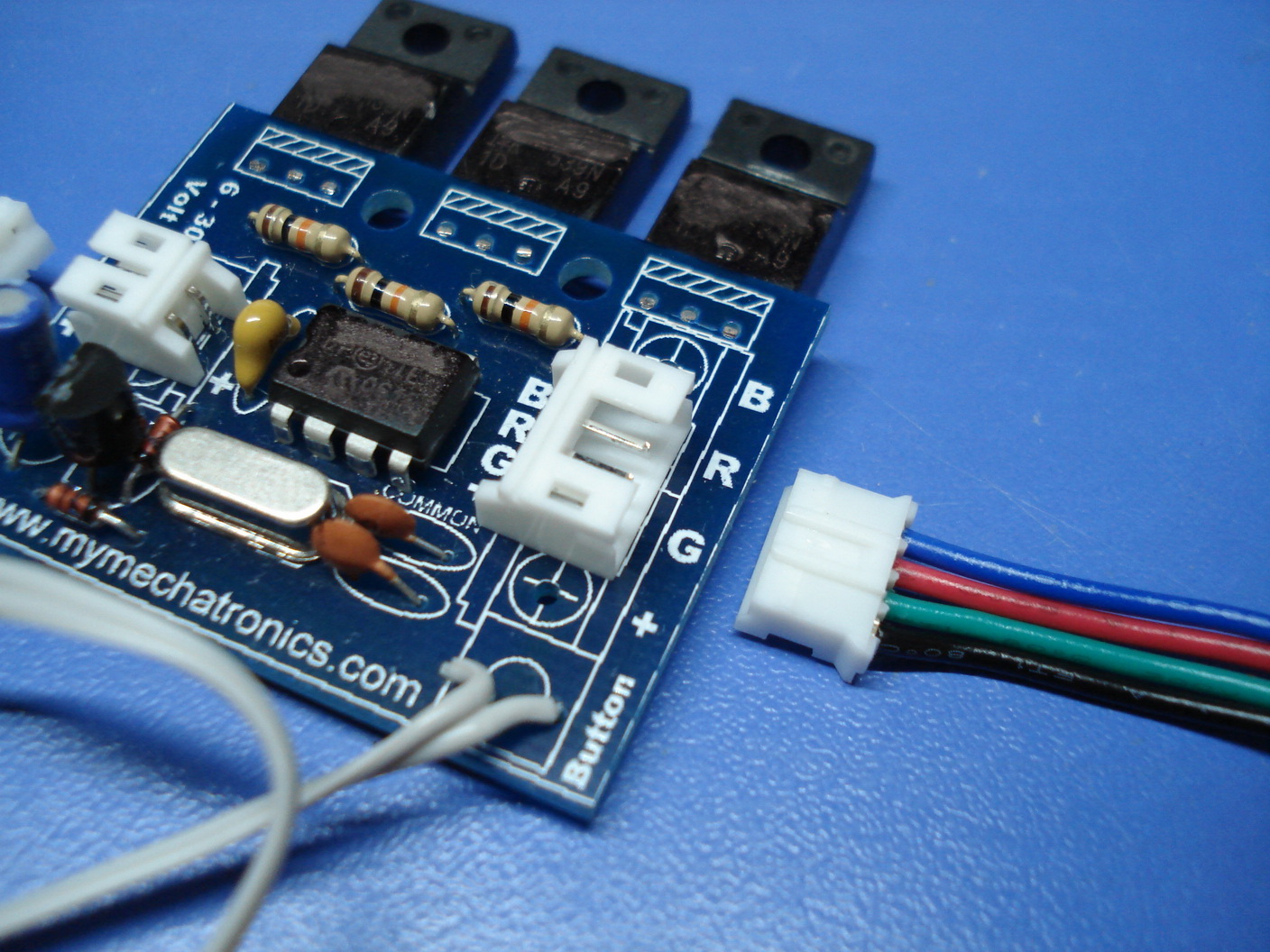

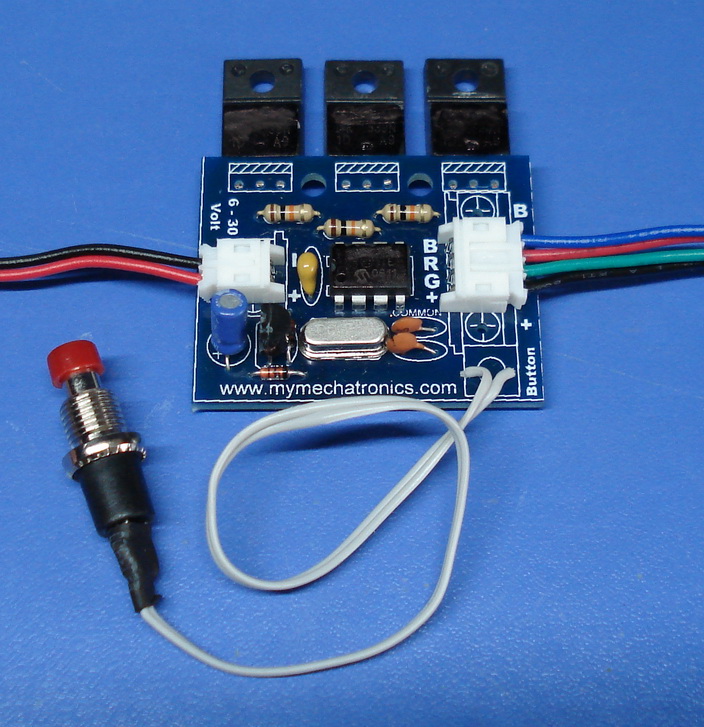

RGB Controller L2 ( Connector )

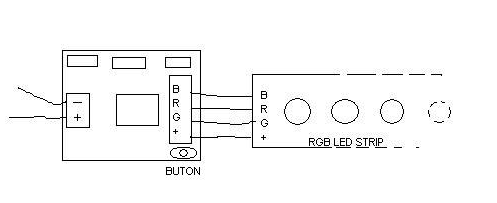

Connection Diagram

Samples

For Buy

choose your favourite product and plz contact us, by that our mail address

KIND OF RGB CONROLLER LITTLE L1 AND L2

This device conrolling RGB LED lignting products also this device is a RGB control system as well as it is a speed controller of DC motors or commander of solenoid valves by its 3 ports. In fact, the system is a PWM controller that commands three ports simultaneously.
  RGB refers to the three colour names in English language: Red, Green and Blue. By the use of these three colours we can produce all the other colour ranges.

Our circuit is produced in two different connector types. We suggest that you choose the connector according to your usage. ( RGB Controller L1 Clamens or RGB Controller L2 Connector)
Before using this system, it is highly recommended to read the technical properties and to follow the connection schematic.
To get the best results in terms of LED colours, the circuit outputs should be connected to the suitable Led colours. Sensitivity of human eye is different for different colours. This was taken into account while developing software of circuit to give best visual result.


watch videos for see what doing RGB L Series Controllers





• Our device can obtain any colour by mixing the different combination of the three main colours and can softly or sharply pass among these colours with time.
• By the use of our product, you would never face the frequent problem of light flickering which you may have faced with other similar products.
• Unlike the similar products which make you obliged to re-enter the wanted values, this circuit automatically saves the last entered program against electricity cut off or voltage disorders.
• Our product can fit to any place easily by its small design.
• You can amplify the output according to your power need by using our amplifiers. You can even decoratively illuminate a big building by using amplifiers at certain led strip lengths.
• This circuit can work between 6 and 30 volts. Each output port supplies 60 watts. The summation of all the ports is 180 watts. If you need to take more than 2 Amperes from each output, it is highly recommended to connect mosfet transistors to a cooling fin. Otherwise you may disorder the device.
• As well as it is possible to control various light emitting components by means of wide voltage range of our product, by using our amplifiers you can increase output power to run lots of AC or DC light components or motors. According to the LED’s voltage, you would give the input: If you are using LED product that works with 12 Volts, you would need to supply an input of 12 Volts to the circuit. The LED products using 24 Volts would need a 24 Volts input.
• This circuit has a protection against wrong voltage connections to its poles (+ and -).

The circuit starts to work from the last point it stayed when it is powered on. To change the program, you should press and release the BUTTON on circuit. Pressing the button changes the programs and speed of programs.

 Every time you press the button, the 7 colours (Red, Green, Blue, Purple, Yellow, Turquoise, and white) would pass progressively. If you would press the button for once more and release it, the program would pass to the one after.
  Every time you press the button, you would see the 3 different speeds of this program. 7 colours slowly turn on and slowly turn off in this program. Next pressing to button makes it to pass consecutive program.
 In this program the colour progression is slow so that you will see millions of colour tones. The progression of colours is soft but not sharp. You can never see any flickering or skipping of light colour tones during this passage of colours. In this program, there are 4 different speed choices that you would see them every time when you press the button. If you would press the button for once more and release it, the program would turn to the beginning…
